Writes interleaved packets to a destination container. More...

#include <StormByte/multimedia/pipeline/muxer.hxx>

Inheritance diagram for StormByte::Multimedia::Pipeline::Muxer:

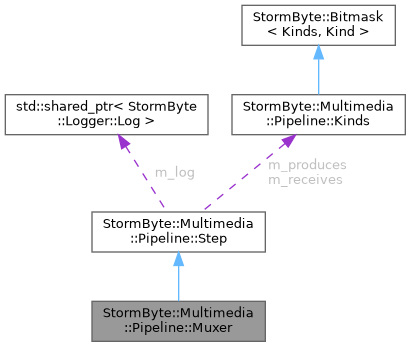

Collaboration diagram for StormByte::Multimedia::Pipeline::Muxer:

[legend]

Public Member Functions
	operator bool () const noexcept
	true if the destination is bound and the muxer has not failed.

bool	Closed () const noexcept
	true after Finish flushed the trailer, or after Fail.

std::optional< Property::Duration >	Position () const noexcept
	Presentation time of the last packet written.

const Container &	Destination () const noexcept
	Destination container.

bool	Armed () const noexcept
	Whether every muxable Plan track has a reserved hopper.

bool	Ready () const noexcept override
	Open finished without Fail or Stop, and Armed.

std::size_t	InputCeiling () const noexcept override
	Ceiling of the muxer input hopper.

Lifecycle
	Muxer (std::shared_ptr< StormByte::Logger::Log > log, const Container &container) noexcept
	Muxer for `container`.

	Muxer (const Muxer &other)=delete
	Copy constructor.

	Muxer (Muxer &&other) noexcept=delete
	Move constructor.

	~Muxer () noexcept override
	Destructor.

Muxer &	operator= (const Muxer &other)=delete
	Copy assignment.

Muxer &	operator= (Muxer &&other) noexcept=delete
	Move assignment.

Stream tags
std::optional< std::string >	Language (int output_index) const noexcept
	Language tag for mux output `output_index`.

void	Language (int output_index, std::string language) noexcept
	Sets the language tag for mux output `output_index`.

std::optional< std::string >	Title (int output_index) const noexcept
	Title tag for mux output `output_index`.

void	Title (int output_index, std::string title) noexcept
	Sets the title tag for mux output `output_index`.

Public Member Functions inherited from StormByte::Multimedia::Pipeline::Step
	Step (const Step &other)=delete

	Step (Step &&other) noexcept=delete

virtual	~Step () noexcept
	Destructor.

Step &	operator= (const Step &other)=delete

Step &	operator= (Step &&other) noexcept=delete

std::condition_variable &	Wake () noexcept
	Consumer condition variable.

const std::shared_ptr< class Plan > &	Plan () const noexcept
	Bound job intention, if any.

const Kinds &	Receives () const noexcept
	Kinds this step consumes.

const Kinds &	Produces () const noexcept
	Kinds this step emits.

State	Status () const noexcept
	Current lifecycle value.

void	Stop () noexcept
	Asks the worker to leave and closes all hoppers.

bool	Failed () const noexcept
	Whether this step has failed.

const std::optional< std::string > &	Error () const noexcept
	Failure text.

void	Fail (std::string reason) noexcept
	Marks Failed, closes all hoppers and wakes the worker.

Friends
class	Backend::Pipeline::Detail::Muxer::Matroska::Container

class	Backend::Pipeline::Muxer

class	Backend::Pipeline::Detail::Worker::Mux

Encoder &	operator>> (Encoder &encoder, Muxer &muxer) noexcept
	Reserves `encoder` as an output track of `muxer`.

Muxer &	operator>> (const File &file, Muxer &muxer) noexcept
	Snapshots attachments of `file` onto `muxer`.

Muxer &	operator>> (Demuxer &demuxer, Muxer &muxer) noexcept
	Binds `demuxer` as remux origin and forwards its attachments.

Muxer &	operator>> (Muxer &muxer, const std::filesystem::path &path) noexcept
	Binds the output path of `muxer`.

Remuxer &	operator>> (Remuxer &remuxer, Muxer &muxer) noexcept
	Reserves `remuxer` as an output track of `muxer`.

Additional Inherited Members
Protected Member Functions inherited from StormByte::Multimedia::Pipeline::Step
Backend::Pipeline::Pipe &	pipe () noexcept
	In / out hoppers of this stage.

const Backend::Pipeline::Pipe &	pipe () const noexcept
	In / out hoppers of this stage.

	Step (std::shared_ptr< StormByte::Logger::Log > log, enum Producer name, Kinds receives, Kinds produces) noexcept
	Step in State::Created.

void	Emit (Item::PointerType item) noexcept
	Write `item` to the Pipe (`item` >> pipe).

Item::PointerType	CloneItem (const Item &item) const noexcept
	Deep-copies `item` through Item::Clone.

void	Wait () noexcept
	Sleeps on Wake until hopper Ready, Failed or Stopping.

void	Launch () noexcept
	Starts the pumper: Setup, Ready, Pump.

void	Halt () noexcept
	Stop and join the pumper.

bool	Stopping () const noexcept
	Worker must return (Stop, Halt or Fail).

void	RecordWork (std::int64_t microseconds) noexcept
	Adds one Process duration to the step summary.

std::int64_t	LastWork () const noexcept
	Duration of the last timed Process, or 0.

void	DumpWork () noexcept
	Writes min/max Process time at Debug.

Backend::Pipeline::Host &	Face () noexcept
	Owner surface for the Pumper and Worker.

void	Mount (std::unique_ptr< Backend::Pipeline::Pumper > pumper, std::unique_ptr< Backend::Pipeline::Worker > worker) noexcept
	Takes ownership of `pumper` and binds `worker`.

virtual std::string	Label () const noexcept
	Display name of this step.

Protected Attributes inherited from StormByte::Multimedia::Pipeline::Step
std::shared_ptr< StormByte::Logger::Log >	m_log

enum Producer	m_name
	UseLog leaf / default Label.

Kinds	m_receives
	Receives.

Kinds	m_produces
	Produces.

Detailed Description

Writes interleaved packets to a destination container.

Notice: destination path when bound, closed once. LowLevel writes always; the shared logger throttles. Remux and encode lanes share this worker.

Does not write the container header until Armed is true. Ready is Status Ready and Armed.

Constructor & Destructor Documentation

◆ Muxer() [1/3]

StormByte::Multimedia::Pipeline::Muxer::Muxer	(	std::shared_ptr< StormByte::Logger::Log >	log,
		const Container &	container
	)

explicitnoexcept

Muxer for container.

Destination path is bound later.

Parameters

log	Shared logger. Empty pointer means no log.
container	Writable registry container.

◆ Muxer() [2/3]

StormByte::Multimedia::Pipeline::Muxer::Muxer ( const Muxer & other )

delete

Copy constructor.

Parameters

other Source muxer.

◆ Muxer() [3/3]

StormByte::Multimedia::Pipeline::Muxer::Muxer ( Muxer && other )

deletenoexcept

Move constructor.

Parameters

other Muxer to take.

◆ ~Muxer()

StormByte::Multimedia::Pipeline::Muxer::~Muxer ( )

overridenoexcept

Destructor.

Step::Join Halt s before backends die.

Member Function Documentation

◆ Armed()

bool StormByte::Multimedia::Pipeline::Muxer::Armed ( ) const

noexcept

Whether every muxable Plan track has a reserved hopper.

Counts Video, Audio and Subtitle entries in Plan::Tracks. Attachments are written at header time and are not hoppers. true when reserved slots equal that count. false with no Plan, or while operator>> is still running.

Does not Fail. The owner of the graph (Filters::Close or Transcoder) checks this after wiring and Fails the Muxer if it is still false.

Returns: Arming state of the output graph.

◆ Closed()

bool StormByte::Multimedia::Pipeline::Muxer::Closed ( ) const

noexcept

true after Finish flushed the trailer, or after Fail.

Returns: Muxer will not accept more packets.

◆ Destination()

const Container & StormByte::Multimedia::Pipeline::Muxer::Destination ( ) const

noexcept

Destination container.

Returns: Registry container passed to the constructor.

◆ InputCeiling()

std::size_t StormByte::Multimedia::Pipeline::Muxer::InputCeiling ( ) const

inlineoverridevirtualnoexcept

Ceiling of the muxer input hopper.

Returns: Max queued packets. Never 0.

Reimplemented from StormByte::Multimedia::Pipeline::Step.

◆ Language() [1/2]

std::optional< std::string > StormByte::Multimedia::Pipeline::Muxer::Language ( int output_index ) const

noexcept

Language tag for mux output output_index.

Parameters

output_index Mux destination order key.

Returns: Tag, or empty.

◆ Language() [2/2]

void StormByte::Multimedia::Pipeline::Muxer::Language	(	int	output_index,
		std::string	language
	)

noexcept

Sets the language tag for mux output output_index.

Parameters

output_index	Mux destination order key.
language	BCP-47 / ISO tag. Empty clears.

◆ operator bool()

StormByte::Multimedia::Pipeline::Muxer::operator bool ( ) const

explicitnoexcept

true if the destination is bound and the muxer has not failed.

Returns: Open and writable.

◆ operator=() [1/2]

Muxer & StormByte::Multimedia::Pipeline::Muxer::operator= ( const Muxer & other )

delete

Copy assignment.

Parameters

other Source muxer.

Returns: *this.

◆ operator=() [2/2]

Muxer & StormByte::Multimedia::Pipeline::Muxer::operator= ( Muxer && other )

deletenoexcept

Move assignment.

Parameters

other Muxer to take.

Returns: *this.

◆ Position()

std::optional< Property::Duration > StormByte::Multimedia::Pipeline::Muxer::Position ( ) const

noexcept

Presentation time of the last packet written.

Returns: Pts of the last video packet, or of audio if no video has been written yet.

◆ Ready()

bool StormByte::Multimedia::Pipeline::Muxer::Ready ( ) const

overridevirtualnoexcept

Open finished without Fail or Stop, and Armed.

Returns: Step Status is Ready and every muxable Plan track is reserved.

Reimplemented from StormByte::Multimedia::Pipeline::Step.

◆ Title() [1/2]

std::optional< std::string > StormByte::Multimedia::Pipeline::Muxer::Title ( int output_index ) const

noexcept

Title tag for mux output output_index.

Parameters

output_index Mux destination order key.

Returns: Title, or empty.

◆ Title() [2/2]

void StormByte::Multimedia::Pipeline::Muxer::Title	(	int	output_index,
		std::string	title
	)

noexcept

Sets the title tag for mux output output_index.

Parameters

output_index	Mux destination order key.
title	Stream title. Empty clears.

Friends And Related Symbol Documentation

◆ Backend::Pipeline::Detail::Muxer::Matroska::Container

friend class Backend::Pipeline::Detail::Muxer::Matroska::Container

friend

◆ Backend::Pipeline::Detail::Worker::Mux

friend class Backend::Pipeline::Detail::Worker::Mux

friend

◆ Backend::Pipeline::Muxer

friend class Backend::Pipeline::Muxer

friend

◆ operator>> [1/5]

Muxer & operator>>	(	const File &	file,
		Muxer &	muxer
	)

friend

Snapshots attachments of file onto muxer.

Parameters

file	Source file.
muxer	Destination.

Returns: muxer.

◆ operator>> [2/5]

Muxer & operator>>	(	Demuxer &	demuxer,
		Muxer &	muxer
	)

friend

Binds demuxer as remux origin and forwards its attachments.

Required when any remux track is reserved. Without it the muxer cannot clone origin codec parameters.

Parameters

demuxer	Origin demuxer. Must outlive header write.
muxer	Destination.

Returns: muxer.

◆ operator>> [3/5]

Encoder & operator>>	(	Encoder &	encoder,
		Muxer &	muxer
	)

friend

Reserves encoder as an output track of muxer.

Parameters

encoder	Live encoder.
muxer	Destination.

Returns: encoder.

◆ operator>> [4/5]

Muxer & operator>>	(	Muxer &	muxer,
		const std::filesystem::path &	path
	)

friend

Binds the output path of muxer.

Parameters

muxer	Muxer.
path	Destination file.

Returns: muxer.

◆ operator>> [5/5]

Remuxer & operator>>	(	Remuxer &	remuxer,
		Muxer &	muxer
	)

friend

Reserves remuxer as an output track of muxer.

Parameters

remuxer	Live remuxer.
muxer	Destination.

Returns: remuxer.

The documentation for this class was generated from the following file:

lib/public/StormByte/multimedia/pipeline/muxer.hxx

Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Muxer() [1/3]

◆ Muxer() [2/3]

◆ Muxer() [3/3]

◆ ~Muxer()

Member Function Documentation

◆ Armed()

◆ Closed()

◆ Destination()

◆ InputCeiling()

◆ Language() [1/2]

◆ Language() [2/2]

◆ operator bool()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ Position()

◆ Ready()

◆ Title() [1/2]

◆ Title() [2/2]

Friends And Related Symbol Documentation

◆ Backend::Pipeline::Detail::Muxer::Matroska::Container

◆ Backend::Pipeline::Detail::Worker::Mux

◆ Backend::Pipeline::Muxer

◆ operator>> [1/5]

◆ operator>> [2/5]

◆ operator>> [3/5]

◆ operator>> [4/5]

◆ operator>> [5/5]
