Forwards compressed packets of one origin track to the muxer. More...

#include <StormByte/multimedia/pipeline/remuxer.hxx>

Inheritance diagram for StormByte::Multimedia::Pipeline::Remuxer:

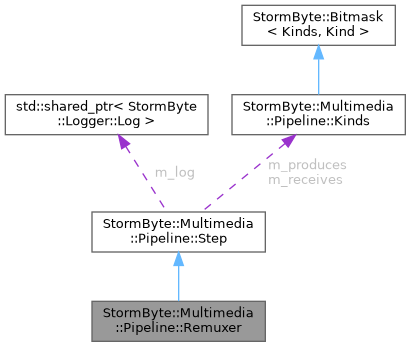

Collaboration diagram for StormByte::Multimedia::Pipeline::Remuxer:

[legend]

Public Member Functions
int	In () const noexcept
	Origin stream index.

std::size_t	InputCeiling () const noexcept override
	Ceiling of the remuxer input hopper.

Lifecycle
	Remuxer (std::shared_ptr< StormByte::Logger::Log > log, int in) noexcept
	Remuxer for origin stream `in`.

	Remuxer (const Remuxer &other)=delete
	Copy constructor.

	Remuxer (Remuxer &&other) noexcept=delete
	Move constructor.

	~Remuxer () noexcept override
	Destructor.

Remuxer &	operator= (const Remuxer &other)=delete
	Copy assignment.

Remuxer &	operator= (Remuxer &&other) noexcept=delete
	Move assignment.

Public Member Functions inherited from StormByte::Multimedia::Pipeline::Step
	Step (const Step &other)=delete

	Step (Step &&other) noexcept=delete

virtual	~Step () noexcept
	Destructor.

Step &	operator= (const Step &other)=delete

Step &	operator= (Step &&other) noexcept=delete

std::condition_variable &	Wake () noexcept
	Consumer condition variable.

const std::shared_ptr< class Plan > &	Plan () const noexcept
	Bound job intention, if any.

const Kinds &	Receives () const noexcept
	Kinds this step consumes.

const Kinds &	Produces () const noexcept
	Kinds this step emits.

State	Status () const noexcept
	Current lifecycle value.

virtual bool	Ready () const noexcept
	Whether this step can take work.

void	Stop () noexcept
	Asks the worker to leave and closes all hoppers.

bool	Failed () const noexcept
	Whether this step has failed.

const std::optional< std::string > &	Error () const noexcept
	Failure text.

void	Fail (std::string reason) noexcept
	Marks Failed, closes all hoppers and wakes the worker.

Friends
class	Backend::Pipeline::Detail::Worker::Remux

class	Route

Remuxer &	operator>> (Demuxer &demuxer, Remuxer &remuxer) noexcept
	Binds origin track remuxer.In() from `demuxer` onto `remuxer`.

Remuxer &	operator>> (Remuxer &remuxer, Muxer &muxer) noexcept
	Reserves `remuxer` as an output track of `muxer`.

Additional Inherited Members
Protected Member Functions inherited from StormByte::Multimedia::Pipeline::Step
Backend::Pipeline::Pipe &	pipe () noexcept
	In / out hoppers of this stage.

const Backend::Pipeline::Pipe &	pipe () const noexcept
	In / out hoppers of this stage.

	Step (std::shared_ptr< StormByte::Logger::Log > log, enum Producer name, Kinds receives, Kinds produces) noexcept
	Step in State::Created.

void	Emit (Item::PointerType item) noexcept
	Write `item` to the Pipe (`item` >> pipe).

Item::PointerType	CloneItem (const Item &item) const noexcept
	Deep-copies `item` through Item::Clone.

void	Wait () noexcept
	Sleeps on Wake until hopper Ready, Failed or Stopping.

void	Launch () noexcept
	Starts the pumper: Setup, Ready, Pump.

void	Halt () noexcept
	Stop and join the pumper.

bool	Stopping () const noexcept
	Worker must return (Stop, Halt or Fail).

void	RecordWork (std::int64_t microseconds) noexcept
	Adds one Process duration to the step summary.

std::int64_t	LastWork () const noexcept
	Duration of the last timed Process, or 0.

void	DumpWork () noexcept
	Writes min/max Process time at Debug.

Backend::Pipeline::Host &	Face () noexcept
	Owner surface for the Pumper and Worker.

void	Mount (std::unique_ptr< Backend::Pipeline::Pumper > pumper, std::unique_ptr< Backend::Pipeline::Worker > worker) noexcept
	Takes ownership of `pumper` and binds `worker`.

Protected Attributes inherited from StormByte::Multimedia::Pipeline::Step
std::shared_ptr< StormByte::Logger::Log >	m_log

enum Producer	m_name
	UseLog leaf / default Label.

Kinds	m_receives
	Receives.

Kinds	m_produces
	Produces.

Detailed Description

Forwards compressed packets of one origin track to the muxer.

Notice: origin index at Open. LowLevel forwards always; the shared logger throttles. The packet keeps the lineage born at the demuxer.

Dest-look is Backend::Pipeline::Pipe::CloneTo on the remux Pipe (Filters dest look). There is no side hopper.

Label is Remuxer(<origin codec>) when a Plan is bound and that stream exists, otherwise Remuxer(t=<origin index>).

Constructor & Destructor Documentation

◆ Remuxer() [1/3]

StormByte::Multimedia::Pipeline::Remuxer::Remuxer	(	std::shared_ptr< StormByte::Logger::Log >	log,
		int	in
	)

explicitnoexcept

Remuxer for origin stream in.

Parameters

log	Shared logger. Empty pointer means no log.
in	Origin stream index.

◆ Remuxer() [2/3]

StormByte::Multimedia::Pipeline::Remuxer::Remuxer ( const Remuxer & other )

delete

Copy constructor.

Parameters

other Source remuxer.

◆ Remuxer() [3/3]

StormByte::Multimedia::Pipeline::Remuxer::Remuxer ( Remuxer && other )

deletenoexcept

Move constructor.

Parameters

other Remuxer to take.

◆ ~Remuxer()

StormByte::Multimedia::Pipeline::Remuxer::~Remuxer ( )

overridenoexcept

Destructor.

Step::Join Halt s before backends die.

Member Function Documentation

◆ In()

int StormByte::Multimedia::Pipeline::Remuxer::In ( ) const

inlinenoexcept

Origin stream index.

Returns: Index passed to the constructor.

◆ InputCeiling()

std::size_t StormByte::Multimedia::Pipeline::Remuxer::InputCeiling ( ) const

inlineoverridevirtualnoexcept

Ceiling of the remuxer input hopper.

Returns: Max queued packets. Never 0.

Reimplemented from StormByte::Multimedia::Pipeline::Step.

◆ operator=() [1/2]

Remuxer & StormByte::Multimedia::Pipeline::Remuxer::operator= ( const Remuxer & other )

delete

Copy assignment.

Parameters

other Source remuxer.

Returns: *this.

◆ operator=() [2/2]

Remuxer & StormByte::Multimedia::Pipeline::Remuxer::operator= ( Remuxer && other )

deletenoexcept

Move assignment.

Parameters

other Remuxer to take.

Returns: *this.

Friends And Related Symbol Documentation

◆ Backend::Pipeline::Detail::Worker::Remux

friend class Backend::Pipeline::Detail::Worker::Remux

friend

◆ operator>> [1/2]

Remuxer & operator>>	(	Demuxer &	demuxer,
		Remuxer &	remuxer
	)

friend

Binds origin track remuxer.In() from demuxer onto remuxer.

Parameters

demuxer	Origin demuxer.
remuxer	Destination remuxer.

Returns: remuxer.

◆ operator>> [2/2]

Remuxer & operator>>	(	Remuxer &	remuxer,
		Muxer &	muxer
	)

friend

Reserves remuxer as an output track of muxer.

Parameters

remuxer	Live remuxer.
muxer	Destination.

Returns: remuxer.

◆ Route

friend class Route

friend

The documentation for this class was generated from the following file:

lib/public/StormByte/multimedia/pipeline/remuxer.hxx
