StormByte::Multimedia::Pipeline::Demuxer Class Reference

Reads interleaved packets from a File origin. More...

#include <StormByte/multimedia/pipeline/demuxer.hxx>

Inheritance diagram for StormByte::Multimedia::Pipeline::Demuxer:

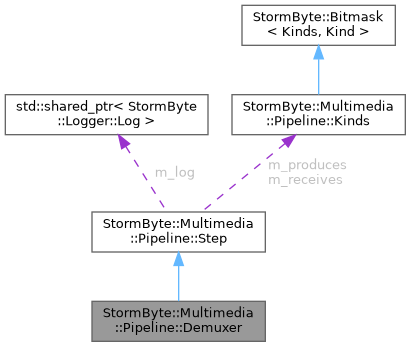

Collaboration diagram for StormByte::Multimedia::Pipeline::Demuxer:

Public Member Functions
	operator bool () const noexcept
	true if open, not failed and not at EOF.
Lifecycle
	Demuxer (std::shared_ptr< StormByte::Logger::Log > log) noexcept
	Demuxer.
	Demuxer (const Demuxer &other)=delete
	Copy constructor.
	Demuxer (Demuxer &&other) noexcept=delete
	Move constructor.
	~Demuxer () noexcept override
	Destructor.
Demuxer &	operator= (const Demuxer &other)=delete
	Copy assignment.
Demuxer &	operator= (Demuxer &&other) noexcept=delete
	Move assignment.
Source
bool	Eof () const noexcept
	Whether the last read hit EOF.
std::optional< Property::Duration >	Position () const noexcept
	Presentation time of the last emitted packet.
Public Member Functions inherited from StormByte::Multimedia::Pipeline::Step
	Step (const Step &other)=delete
	Step (Step &&other) noexcept=delete
virtual	~Step () noexcept
	Destructor.
Step &	operator= (const Step &other)=delete
Step &	operator= (Step &&other) noexcept=delete
std::condition_variable &	Wake () noexcept
	Consumer condition variable.
const std::shared_ptr< class Plan > &	Plan () const noexcept
	Bound job intention, if any.
const Kinds &	Receives () const noexcept
	Kinds this step consumes.
const Kinds &	Produces () const noexcept
	Kinds this step emits.
State	Status () const noexcept
	Current lifecycle value.
virtual bool	Ready () const noexcept
	Whether this step can take work.
void	Stop () noexcept
	Asks the worker to leave and closes all hoppers.
virtual std::size_t	InputCeiling () const noexcept
	Ceiling of this step's input hopper.
bool	Failed () const noexcept
	Whether this step has failed.
const std::optional< std::string > &	Error () const noexcept
	Failure text.
void	Fail (std::string reason) noexcept
	Marks Failed, closes all hoppers and wakes the worker.

Friends
class	Backend::Pipeline::Demuxer
class	Backend::Pipeline::Detail::Worker::Demux
class	Decoder
class	Muxer
Decoder &	operator>> (Demuxer &demuxer, Decoder &decoder) noexcept
	Binds one origin track of demuxer to decoder.
Demuxer &	operator>> (class Plan &&plan, Demuxer &demuxer) noexcept
	Hands plan to demuxer.
Muxer &	operator>> (Demuxer &demuxer, Muxer &muxer) noexcept
	Binds demuxer as remux origin and forwards its attachments.
Remuxer &	operator>> (Demuxer &demuxer, Remuxer &remuxer) noexcept
	Binds origin track remuxer.In() from demuxer onto remuxer.

Additional Inherited Members
Protected Member Functions inherited from StormByte::Multimedia::Pipeline::Step
Backend::Pipeline::Pipe &	pipe () noexcept
	In / out hoppers of this stage.
const Backend::Pipeline::Pipe &	pipe () const noexcept
	In / out hoppers of this stage.
	Step (std::shared_ptr< StormByte::Logger::Log > log, enum Producer name, Kinds receives, Kinds produces) noexcept
	Step in State::Created.
void	Emit (Item::PointerType item) noexcept
	Write item to the Pipe (item >> pipe).
Item::PointerType	CloneItem (const Item &item) const noexcept
	Deep-copies item through Item::Clone.
void	Wait () noexcept
	Sleeps on Wake until hopper Ready, Failed or Stopping.
void	Launch () noexcept
	Starts the pumper: Setup, Ready, Pump.
void	Halt () noexcept
	Stop and join the pumper.
bool	Stopping () const noexcept
	Worker must return (Stop, Halt or Fail).
void	RecordWork (std::int64_t microseconds) noexcept
	Adds one Process duration to the step summary.
std::int64_t	LastWork () const noexcept
	Duration of the last timed Process, or 0.
void	DumpWork () noexcept
	Writes min/max Process time at Debug.
Backend::Pipeline::Host &	Face () noexcept
	Owner surface for the Pumper and Worker.
void	Mount (std::unique_ptr< Backend::Pipeline::Pumper > pumper, std::unique_ptr< Backend::Pipeline::Worker > worker) noexcept
	Takes ownership of pumper and binds worker.
virtual std::string	Label () const noexcept
	Display name of this step.
Protected Attributes inherited from StormByte::Multimedia::Pipeline::Step
std::shared_ptr< StormByte::Logger::Log >	m_log
enum Producer	m_name
	UseLog leaf / default Label.
Kinds	m_receives
	Receives.
Kinds	m_produces
	Produces.

Detailed Description

Reads interleaved packets from a File origin.

Reads interleaved compressed packets from the Plan origin.

Only tracks listed in the bound Plan enter the tube. An origin stream omitted from Plan::add is never pushed.

Notice: origin path at Setup, eof once. Debug: bind to a decoder and Process min/max at source EoF. LowLevel unit lines always; the shared logger throttles. Each Read+Emit is timed by the Source pumper.

Wrap assigns the next Packet::Serial for that origin track and Part zero. That id is pipe lineage, not an FFmpeg frame count.

Constructor & Destructor Documentation

Demuxer() [1/3]

StormByte::Multimedia::Pipeline::Demuxer::Demuxer ( std::shared_ptr< StormByte::Logger::Log >  log )

explicitnoexcept

Demuxer.

Launches; Setup waits for a Plan.

Parameters

log	Shared logger. Empty pointer means no log.

Demuxer() [2/3]

StormByte::Multimedia::Pipeline::Demuxer::Demuxer ( const Demuxer &  other )

delete

Copy constructor.

Parameters

other

Source demuxer.

Demuxer() [3/3]

StormByte::Multimedia::Pipeline::Demuxer::Demuxer ( Demuxer &&  other )

deletenoexcept

Move constructor.

Parameters

other

Demuxer to take.

~Demuxer()

StormByte::Multimedia::Pipeline::Demuxer::~Demuxer ( )

overridenoexcept

Destructor.

Step::Join Halt s before backends die.

Member Function Documentation

Eof()

bool StormByte::Multimedia::Pipeline::Demuxer::Eof ( ) const

noexcept

Whether the last read hit EOF.

Returns

true at end of source.

operator bool()

StormByte::Multimedia::Pipeline::Demuxer::operator bool ( ) const

explicitnoexcept

true if open, not failed and not at EOF.

Returns

Open and readable.

operator=() [1/2]

Demuxer & StormByte::Multimedia::Pipeline::Demuxer::operator= ( const Demuxer &  other )

delete

Copy assignment.

Parameters

other

Source demuxer.

Returns

*this.

operator=() [2/2]

Demuxer & StormByte::Multimedia::Pipeline::Demuxer::operator= ( Demuxer &&  other )

deletenoexcept

Move assignment.

Parameters

other

Demuxer to take.

Returns

*this.

Position()

std::optional< Property::Duration > StormByte::Multimedia::Pipeline::Demuxer::Position ( ) const

noexcept

Presentation time of the last emitted packet.

Returns

Pts, or empty until a packet with Pts arrives.

Friends And Related Symbol Documentation

Backend::Pipeline::Demuxer

friend class Backend::Pipeline::Demuxer

friend

Backend::Pipeline::Detail::Worker::Demux

friend class Backend::Pipeline::Detail::Worker::Demux

friend

Decoder

friend class Decoder

friend

Muxer

friend class Muxer

friend

operator>> [1/4]

Demuxer & operator>> ( class Plan &&  plan, Demuxer &  demuxer  )

friend

Hands plan to demuxer.

Not a Step bind.

Parameters

plan	Intention (moved).
demuxer	Destination.

Returns

demuxer.

Stores the Plan on the Demuxer and wakes it. Does not call Plan::Check and does not bind hoppers.

operator>> [2/4]

Decoder & operator>> ( Demuxer &  demuxer, Decoder &  decoder  )

friend

Binds one origin track of demuxer to decoder.

Parameters

demuxer	Origin demuxer.
decoder	Destination decoder.

Returns

decoder.

operator>> [3/4]

Muxer & operator>> ( Demuxer &  demuxer, Muxer &  muxer  )

friend

Binds demuxer as remux origin and forwards its attachments.

Required when any remux track is reserved. Without it the muxer cannot clone origin codec parameters.

Parameters

demuxer	Origin demuxer. Must outlive header write.
muxer	Destination.

Returns

muxer.

operator>> [4/4]

Remuxer & operator>> ( Demuxer &  demuxer, Remuxer &  remuxer  )

friend

Binds origin track remuxer.In() from demuxer onto remuxer.

Parameters

demuxer	Origin demuxer.
remuxer	Destination remuxer.

Returns

remuxer.

---

The documentation for this class was generated from the following file:

• lib/public/StormByte/multimedia/pipeline/demuxer.hxx
