Decodes packets of one origin track into frames. More...

#include <StormByte/multimedia/pipeline/decoder.hxx>

Inheritance diagram for StormByte::Multimedia::Pipeline::Decoder:

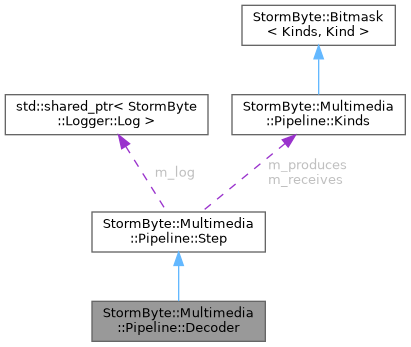

Collaboration diagram for StormByte::Multimedia::Pipeline::Decoder:

[legend]

Public Member Functions
Lifecycle
	Decoder (std::shared_ptr< StormByte::Logger::Log > log, int track, DecoderFlags flags=DecoderFlags{}) noexcept
	Decoder for one origin track.

	Decoder (const Decoder &other)=delete
	Copy constructor.

	Decoder (Decoder &&other) noexcept=delete
	Move constructor.

	~Decoder () noexcept override
	Destructor.

Decoder &	operator= (const Decoder &other)=delete
	Copy assignment.

Decoder &	operator= (Decoder &&other) noexcept=delete
	Move assignment.

	operator bool () const noexcept
	true if open and not failed.

Track
int	Index () const noexcept
	Bound origin track.

std::size_t	InputCeiling () const noexcept override
	Ceiling of the decoder input hopper.

const DecoderFlags &	Flags () const noexcept
	Flags.

void	Flags (DecoderFlags flags) noexcept
	Replaces flags (before demuxer >> decoder).

const std::optional< std::string > &	Language () const noexcept
	Stream language tag copied from the origin File.

const std::optional< std::string > &	Title () const noexcept
	Stream title tag copied from the origin File.

Implementation selection
const std::optional< std::string > &	Implementation () const noexcept
	Pinned FFmpeg decoder name, if any.

void	Implementation (std::string name) noexcept
	Pins an FFmpeg decoder name (before demuxer >> decoder).

const Features &	Require () const noexcept
	Extra required Feature bits.

void	Require (Features features) noexcept
	Replaces extra required Feature bits.

const Features &	Capabilities () const noexcept
	Features of the opened implementation.

Public Member Functions inherited from StormByte::Multimedia::Pipeline::Step
	Step (const Step &other)=delete

	Step (Step &&other) noexcept=delete

virtual	~Step () noexcept
	Destructor.

Step &	operator= (const Step &other)=delete

Step &	operator= (Step &&other) noexcept=delete

std::condition_variable &	Wake () noexcept
	Consumer condition variable.

const std::shared_ptr< class Plan > &	Plan () const noexcept
	Bound job intention, if any.

const Kinds &	Receives () const noexcept
	Kinds this step consumes.

const Kinds &	Produces () const noexcept
	Kinds this step emits.

State	Status () const noexcept
	Current lifecycle value.

virtual bool	Ready () const noexcept
	Whether this step can take work.

void	Stop () noexcept
	Asks the worker to leave and closes all hoppers.

bool	Failed () const noexcept
	Whether this step has failed.

const std::optional< std::string > &	Error () const noexcept
	Failure text.

void	Fail (std::string reason) noexcept
	Marks Failed, closes all hoppers and wakes the worker.

Friends
class	Backend::Pipeline::Decoder

class	Backend::Pipeline::Detail::Worker::Decode

class	Demuxer

class	Route

Decoder &	operator>> (Demuxer &demuxer, Decoder &decoder) noexcept
	Binds one origin track of `demuxer` to `decoder`.

Additional Inherited Members
Protected Member Functions inherited from StormByte::Multimedia::Pipeline::Step
Backend::Pipeline::Pipe &	pipe () noexcept
	In / out hoppers of this stage.

const Backend::Pipeline::Pipe &	pipe () const noexcept
	In / out hoppers of this stage.

	Step (std::shared_ptr< StormByte::Logger::Log > log, enum Producer name, Kinds receives, Kinds produces) noexcept
	Step in State::Created.

void	Emit (Item::PointerType item) noexcept
	Write `item` to the Pipe (`item` >> pipe).

Item::PointerType	CloneItem (const Item &item) const noexcept
	Deep-copies `item` through Item::Clone.

void	Wait () noexcept
	Sleeps on Wake until hopper Ready, Failed or Stopping.

void	Launch () noexcept
	Starts the pumper: Setup, Ready, Pump.

void	Halt () noexcept
	Stop and join the pumper.

bool	Stopping () const noexcept
	Worker must return (Stop, Halt or Fail).

void	RecordWork (std::int64_t microseconds) noexcept
	Adds one Process duration to the step summary.

std::int64_t	LastWork () const noexcept
	Duration of the last timed Process, or 0.

void	DumpWork () noexcept
	Writes min/max Process time at Debug.

Backend::Pipeline::Host &	Face () noexcept
	Owner surface for the Pumper and Worker.

void	Mount (std::unique_ptr< Backend::Pipeline::Pumper > pumper, std::unique_ptr< Backend::Pipeline::Worker > worker) noexcept
	Takes ownership of `pumper` and binds `worker`.

Protected Attributes inherited from StormByte::Multimedia::Pipeline::Step
std::shared_ptr< StormByte::Logger::Log >	m_log

enum Producer	m_name
	UseLog leaf / default Label.

Kinds	m_receives
	Receives.

Kinds	m_produces
	Produces.

Detailed Description

Decodes packets of one origin track into frames.

Notice: opened implementation, once. LowLevel unit lines always; the shared logger throttles. The Through pumper times each Process; source EoF dumps min/max at Debug.

Lineage: StampLineage copies the last accepted packet Serial onto each produced frame and advances Part. Dts of that packet is copied onto Frame::Dts. That is pipe lineage, not a decoded-frame count.

Origin frames leave through Step::Emit (analytics tap clone, then process). Dest-look frames also Emit; their Producer is the stage that fed the look (Producer::Encoder or Producer::Remuxer). Source-look frames keep Producer::Decoder.

Label is Decoder(<implementation>) after Open pins a table row, otherwise Decoder(t=<origin index>). Look mode is Decoder(look encode|remux|src t=<index>).

Look modes are not public constructors. Filters builds them when Analytics needs pictures from a packet stretch. Those decoders have no Demuxer: they open from the first Packet's codec parameters. The public ctor never enters look mode.

Constructor & Destructor Documentation

◆ Decoder() [1/3]

StormByte::Multimedia::Pipeline::Decoder::Decoder	(	std::shared_ptr< StormByte::Logger::Log >	log,
		int	track,
		DecoderFlags	flags = `DecoderFlags{}`
	)

explicitnoexcept

Decoder for one origin track.

Parameters

log	Shared logger. Empty pointer means no log.
track	Origin stream index.
flags	Heuristics / future bits. Empty = passthrough.

Origin mode. Frames carry Producer::Decoder. Setup waits for demuxer >> decoder.

◆ Decoder() [2/3]

StormByte::Multimedia::Pipeline::Decoder::Decoder ( const Decoder & other )

delete

Copy constructor.

Parameters

other Source decoder.

◆ Decoder() [3/3]

StormByte::Multimedia::Pipeline::Decoder::Decoder ( Decoder && other )

deletenoexcept

Move constructor.

Parameters

other Decoder to take.

◆ ~Decoder()

StormByte::Multimedia::Pipeline::Decoder::~Decoder ( )

overridenoexcept

Destructor.

Step::Join Halt s before backends die.

Member Function Documentation

◆ Capabilities()

const Features & StormByte::Multimedia::Pipeline::Decoder::Capabilities ( ) const

inlinenoexcept

Features of the opened implementation.

Returns: Mask.

◆ Flags() [1/2]

const DecoderFlags & StormByte::Multimedia::Pipeline::Decoder::Flags ( ) const

inlinenoexcept

Flags.

Returns: Mask.

◆ Flags() [2/2]

void StormByte::Multimedia::Pipeline::Decoder::Flags ( DecoderFlags flags )

inlinenoexcept

Replaces flags (before demuxer >> decoder).

Parameters

flags New mask.

◆ Implementation() [1/2]

const std::optional< std::string > & StormByte::Multimedia::Pipeline::Decoder::Implementation ( ) const

inlinenoexcept

Pinned FFmpeg decoder name, if any.

Returns: Name, or empty before pin / auto-select.

◆ Implementation() [2/2]

void StormByte::Multimedia::Pipeline::Decoder::Implementation ( std::string name )

noexcept

Pins an FFmpeg decoder name (before demuxer >> decoder).

Parameters

name	Table name. Empty clears the pin.

◆ Index()

int StormByte::Multimedia::Pipeline::Decoder::Index ( ) const

inlinenoexcept

Bound origin track.

Returns: Track.

◆ InputCeiling()

std::size_t StormByte::Multimedia::Pipeline::Decoder::InputCeiling ( ) const

inlineoverridevirtualnoexcept

Ceiling of the decoder input hopper.

Returns: Max queued packets. Never 0.

Reimplemented from StormByte::Multimedia::Pipeline::Step.

◆ Language()

const std::optional< std::string > & StormByte::Multimedia::Pipeline::Decoder::Language ( ) const

inlinenoexcept

Stream language tag copied from the origin File.

Returns: Language, or empty.

◆ operator bool()

StormByte::Multimedia::Pipeline::Decoder::operator bool ( ) const

explicitnoexcept

true if open and not failed.

Returns: Open and not Failed.

◆ operator=() [1/2]

Decoder & StormByte::Multimedia::Pipeline::Decoder::operator= ( const Decoder & other )

delete

Copy assignment.

Parameters

other Source decoder.

Returns: *this.

◆ operator=() [2/2]

Decoder & StormByte::Multimedia::Pipeline::Decoder::operator= ( Decoder && other )

deletenoexcept

Move assignment.

Parameters

other Decoder to take.

Returns: *this.

◆ Require() [1/2]

const Features & StormByte::Multimedia::Pipeline::Decoder::Require ( ) const

inlinenoexcept

Extra required Feature bits.

Returns: Mask.

◆ Require() [2/2]

void StormByte::Multimedia::Pipeline::Decoder::Require ( Features features )

inlinenoexcept

Replaces extra required Feature bits.

Parameters

features Bits the chosen table row must have.

◆ Title()

const std::optional< std::string > & StormByte::Multimedia::Pipeline::Decoder::Title ( ) const

inlinenoexcept

Stream title tag copied from the origin File.

Returns: Title, or empty.

Friends And Related Symbol Documentation

◆ Backend::Pipeline::Decoder

friend class Backend::Pipeline::Decoder

friend

◆ Backend::Pipeline::Detail::Worker::Decode

friend class Backend::Pipeline::Detail::Worker::Decode

friend

◆ Demuxer

friend class Demuxer

friend

◆ operator>>

Decoder & operator>>	(	Demuxer &	demuxer,
		Decoder &	decoder
	)

friend

Binds one origin track of demuxer to decoder.

Parameters

demuxer	Origin demuxer.
decoder	Destination decoder.

Returns: decoder.

◆ Route

friend class Route

friend

The documentation for this class was generated from the following file:

lib/public/StormByte/multimedia/pipeline/decoder.hxx
