Encodes frames of one output track into packets. More...

#include <StormByte/multimedia/pipeline/encoder.hxx>

Inheritance diagram for StormByte::Multimedia::Pipeline::Encoder:

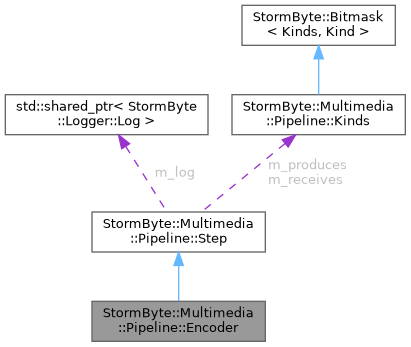

Collaboration diagram for StormByte::Multimedia::Pipeline::Encoder:

[legend]

Public Member Functions
Lifecycle
	Encoder (std::shared_ptr< StormByte::Logger::Log > log, int output_index, const Codec &codec) noexcept
	Encoder for output track `output_index` and destination `codec`.

	Encoder (const Encoder &other)=delete
	Copy constructor.

	Encoder (Encoder &&other) noexcept=delete
	Move constructor.

	~Encoder () noexcept override
	Destructor.

Encoder &	operator= (const Encoder &other)=delete
	Copy assignment.

Encoder &	operator= (Encoder &&other) noexcept=delete
	Move assignment.

State
	operator bool () const noexcept
	true if the backend is open and not failed.

int	Index () const noexcept
	Mux destination order key.

std::size_t	InputCeiling () const noexcept override
	Ceiling of the encoder input hopper.

const Codec &	Destination () const noexcept
	Destination codec.

bool	Opened () const noexcept
	Whether the backend finished Open().

std::optional< int >	AudioChannels () const noexcept
	Encoder channel count after Open(), audio only.

std::optional< int >	AudioSampleRate () const noexcept
	Encoder sample rate after Open(), audio only.

std::optional< int >	AudioFrameSize () const noexcept
	Encoder frame_size after Open(), audio only.

std::optional< int >	AudioSampleFormat () const noexcept
	Encoder sample format after Open(), audio only.

Encoder tag
const std::string &	EncoderTag () const noexcept
	Writing-application tag stamped on every encoded stream.

Implementation
const std::optional< std::string > &	Implementation () const noexcept
	Pinned FFmpeg encoder name, if any.

void	Implementation (std::string name) noexcept
	Pins an FFmpeg encoder name.

const Features &	Require () const noexcept
	Extra features the caller demands besides Frame HDR.

void	Require (Features features) noexcept
	Replaces the extra feature mask (before open).

const Features &	Capabilities () const noexcept
	Features of the row selected at open.

Rate and style
void	CRF (int value) noexcept
	Constant quality (CRF/CQ).

const std::optional< int > &	CRF () const noexcept
	CRF/CQ, if set.

void	BitRate (std::int64_t bits_per_second) noexcept
	Target bitrate in bits per second.

const std::optional< std::int64_t > &	BitRate () const noexcept
	Target bitrate, if set.

void	MaxBitRate (std::int64_t bits_per_second) noexcept
	VBV ceiling in bits per second.

const std::optional< std::int64_t > &	MaxBitRate () const noexcept
	VBV ceiling, if set.

void	Preset (std::string name) noexcept
	Encoder preset.

const std::optional< std::string > &	Preset () const noexcept
	Preset, if set.

void	Tune (std::string name) noexcept
	Content tune.

const std::optional< std::string > &	Tune () const noexcept
	Content tune, if set.

FineTune
const std::map< std::string, std::string > &	FineTune () const noexcept
	Vendor leftovers.

void	FineTune (std::map< std::string, std::string > options) noexcept
	Replaces the vendor dict (before open).

Public Member Functions inherited from StormByte::Multimedia::Pipeline::Step
	Step (const Step &other)=delete

	Step (Step &&other) noexcept=delete

virtual	~Step () noexcept
	Destructor.

Step &	operator= (const Step &other)=delete

Step &	operator= (Step &&other) noexcept=delete

std::condition_variable &	Wake () noexcept
	Consumer condition variable.

const std::shared_ptr< class Plan > &	Plan () const noexcept
	Bound job intention, if any.

const Kinds &	Receives () const noexcept
	Kinds this step consumes.

const Kinds &	Produces () const noexcept
	Kinds this step emits.

State	Status () const noexcept
	Current lifecycle value.

virtual bool	Ready () const noexcept
	Whether this step can take work.

void	Stop () noexcept
	Asks the worker to leave and closes all hoppers.

bool	Failed () const noexcept
	Whether this step has failed.

const std::optional< std::string > &	Error () const noexcept
	Failure text.

void	Fail (std::string reason) noexcept
	Marks Failed, closes all hoppers and wakes the worker.

Friends
class	Backend::Pipeline::Encoder

class	Backend::Pipeline::Detail::Worker::Encode

class	Muxer

Additional Inherited Members
Protected Member Functions inherited from StormByte::Multimedia::Pipeline::Step
Backend::Pipeline::Pipe &	pipe () noexcept
	In / out hoppers of this stage.

const Backend::Pipeline::Pipe &	pipe () const noexcept
	In / out hoppers of this stage.

	Step (std::shared_ptr< StormByte::Logger::Log > log, enum Producer name, Kinds receives, Kinds produces) noexcept
	Step in State::Created.

void	Emit (Item::PointerType item) noexcept
	Write `item` to the Pipe (`item` >> pipe).

Item::PointerType	CloneItem (const Item &item) const noexcept
	Deep-copies `item` through Item::Clone.

void	Wait () noexcept
	Sleeps on Wake until hopper Ready, Failed or Stopping.

void	Launch () noexcept
	Starts the pumper: Setup, Ready, Pump.

void	Halt () noexcept
	Stop and join the pumper.

bool	Stopping () const noexcept
	Worker must return (Stop, Halt or Fail).

void	RecordWork (std::int64_t microseconds) noexcept
	Adds one Process duration to the step summary.

std::int64_t	LastWork () const noexcept
	Duration of the last timed Process, or 0.

void	DumpWork () noexcept
	Writes min/max Process time at Debug.

Backend::Pipeline::Host &	Face () noexcept
	Owner surface for the Pumper and Worker.

void	Mount (std::unique_ptr< Backend::Pipeline::Pumper > pumper, std::unique_ptr< Backend::Pipeline::Worker > worker) noexcept
	Takes ownership of `pumper` and binds `worker`.

Protected Attributes inherited from StormByte::Multimedia::Pipeline::Step
std::shared_ptr< StormByte::Logger::Log >	m_log

enum Producer	m_name
	UseLog leaf / default Label.

Kinds	m_receives
	Receives.

Kinds	m_produces
	Produces.

Detailed Description

Encodes frames of one output track into packets.

Notice: destination codec when the backend first opens. LowLevel unit lines are always written; the shared logger throttles. One incoming frame counts once; packets produced in that Work share the sample. Pts/Dts on Wrap are the flattened encoder clock (the line that catches a bad DTS flatten). The Through pumper times each Process.

Label is Encoder(libx265) when an implementation is pinned or selected, otherwise Encoder(<registry name>).

Encode-look is Backend::Pipeline::Pipe::CloneTo on the encode Pipe (Filters dest look). There is no side hopper.

Constructor & Destructor Documentation

◆ Encoder() [1/3]

StormByte::Multimedia::Pipeline::Encoder::Encoder	(	std::shared_ptr< StormByte::Logger::Log >	log,
		int	output_index,
		const Codec &	codec
	)

noexcept

Encoder for output track output_index and destination codec.

Parameters

log	Shared logger. Empty pointer means no log.
output_index	Mux destination order key.
codec	Registry codec. Must HasAccess(Write) at open.

◆ Encoder() [2/3]

StormByte::Multimedia::Pipeline::Encoder::Encoder ( const Encoder & other )

delete

Copy constructor.

Parameters

other Source encoder.

◆ Encoder() [3/3]

StormByte::Multimedia::Pipeline::Encoder::Encoder ( Encoder && other )

deletenoexcept

Move constructor.

Parameters

other Encoder to take.

◆ ~Encoder()

StormByte::Multimedia::Pipeline::Encoder::~Encoder ( )

overridenoexcept

Destructor.

Step::Join Halt s before backends die.

Member Function Documentation

◆ AudioChannels()

std::optional< int > StormByte::Multimedia::Pipeline::Encoder::AudioChannels ( ) const

noexcept

Encoder channel count after Open(), audio only.

Returns: Channels, or empty.

◆ AudioFrameSize()

std::optional< int > StormByte::Multimedia::Pipeline::Encoder::AudioFrameSize ( ) const

noexcept

Encoder frame_size after Open(), audio only.

Returns: Samples per packet, or empty.

◆ AudioSampleFormat()

std::optional< int > StormByte::Multimedia::Pipeline::Encoder::AudioSampleFormat ( ) const

noexcept

Encoder sample format after Open(), audio only.

Returns: AVSampleFormat as int, or empty.

◆ AudioSampleRate()

std::optional< int > StormByte::Multimedia::Pipeline::Encoder::AudioSampleRate ( ) const

noexcept

Encoder sample rate after Open(), audio only.

Returns: Hz, or empty.

◆ BitRate() [1/2]

const std::optional< std::int64_t > & StormByte::Multimedia::Pipeline::Encoder::BitRate ( ) const

inlinenoexcept

Target bitrate, if set.

Returns: Bits per second, or empty.

◆ BitRate() [2/2]

void StormByte::Multimedia::Pipeline::Encoder::BitRate ( std::int64_t bits_per_second )

inlinenoexcept

Target bitrate in bits per second.

Incompatible with CRF.

Parameters

bits_per_second Bitrate.

◆ Capabilities()

const Features & StormByte::Multimedia::Pipeline::Encoder::Capabilities ( ) const

inlinenoexcept

Features of the row selected at open.

Empty if fallback.

Returns: Mask.

◆ CRF() [1/2]

const std::optional< int > & StormByte::Multimedia::Pipeline::Encoder::CRF ( ) const

inlinenoexcept

CRF/CQ, if set.

Returns: Value, or empty.

◆ CRF() [2/2]

void StormByte::Multimedia::Pipeline::Encoder::CRF ( int value )

inlinenoexcept

Constant quality (CRF/CQ).

Incompatible with BitRate.

Parameters

value Encoder quality value.

◆ Destination()

const Codec & StormByte::Multimedia::Pipeline::Encoder::Destination ( ) const

inlinenoexcept

Destination codec.

Returns: Registry codec bound at construction.

◆ EncoderTag()

const std::string & StormByte::Multimedia::Pipeline::Encoder::EncoderTag ( ) const

inlinenoexcept

Writing-application tag stamped on every encoded stream.

Returns: StormByte-Multimedia version. Never empty after construction.

◆ FineTune() [1/2]

const std::map< std::string, std::string > & StormByte::Multimedia::Pipeline::Encoder::FineTune ( ) const

inlinenoexcept

Vendor leftovers.

Not CRF/preset/tune/bufsize.

Returns: Key/value map.

◆ FineTune() [2/2]

void StormByte::Multimedia::Pipeline::Encoder::FineTune ( std::map< std::string, std::string > options )

inlinenoexcept

Replaces the vendor dict (before open).

Parameters

options Key/value pairs.

◆ Implementation() [1/2]

const std::optional< std::string > & StormByte::Multimedia::Pipeline::Encoder::Implementation ( ) const

inlinenoexcept

Pinned FFmpeg encoder name, if any.

Returns: Name, or empty.

◆ Implementation() [2/2]

void StormByte::Multimedia::Pipeline::Encoder::Implementation ( std::string name )

noexcept

Pins an FFmpeg encoder name.

Empty clears the pin.

Parameters

name	avcodec_find_encoder_by_name key.

◆ Index()

int StormByte::Multimedia::Pipeline::Encoder::Index ( ) const

inlinenoexcept

Mux destination order key.

Returns: Index set at construction.

◆ InputCeiling()

std::size_t StormByte::Multimedia::Pipeline::Encoder::InputCeiling ( ) const

inlineoverridevirtualnoexcept

Ceiling of the encoder input hopper.

Returns: Max queued frames. Never 0.

Reimplemented from StormByte::Multimedia::Pipeline::Step.

◆ MaxBitRate() [1/2]

const std::optional< std::int64_t > & StormByte::Multimedia::Pipeline::Encoder::MaxBitRate ( ) const

inlinenoexcept

VBV ceiling, if set.

Returns: Bits per second, or empty.

◆ MaxBitRate() [2/2]

void StormByte::Multimedia::Pipeline::Encoder::MaxBitRate ( std::int64_t bits_per_second )

inlinenoexcept

VBV ceiling in bits per second.

Parameters

bits_per_second Max bitrate.

◆ Opened()

bool StormByte::Multimedia::Pipeline::Encoder::Opened ( ) const

noexcept

Whether the backend finished Open().

Returns: false before the first frame or after Fail().

◆ operator bool()

StormByte::Multimedia::Pipeline::Encoder::operator bool ( ) const

explicitnoexcept

true if the backend is open and not failed.

Returns: Open and not Failed.

◆ operator=() [1/2]

Encoder & StormByte::Multimedia::Pipeline::Encoder::operator= ( const Encoder & other )

delete

Copy assignment.

Parameters

other Source encoder.

Returns: *this.

◆ operator=() [2/2]

Encoder & StormByte::Multimedia::Pipeline::Encoder::operator= ( Encoder && other )

deletenoexcept

Move assignment.

Parameters

other Encoder to take.

Returns: *this.

◆ Preset() [1/2]

const std::optional< std::string > & StormByte::Multimedia::Pipeline::Encoder::Preset ( ) const

inlinenoexcept

Preset, if set.

Returns: Name, or empty.

◆ Preset() [2/2]

void StormByte::Multimedia::Pipeline::Encoder::Preset ( std::string name )

noexcept

Encoder preset.

Parameters

name	Preset name.

◆ Require() [1/2]

const Features & StormByte::Multimedia::Pipeline::Encoder::Require ( ) const

inlinenoexcept

Extra features the caller demands besides Frame HDR.

Returns: Mask.

◆ Require() [2/2]

void StormByte::Multimedia::Pipeline::Encoder::Require ( Features features )

inlinenoexcept

Replaces the extra feature mask (before open).

Parameters

features Required bits.

◆ Tune() [1/2]

const std::optional< std::string > & StormByte::Multimedia::Pipeline::Encoder::Tune ( ) const

inlinenoexcept

Content tune, if set.

Returns: Name, or empty.

◆ Tune() [2/2]

void StormByte::Multimedia::Pipeline::Encoder::Tune ( std::string name )

noexcept

Content tune.

Parameters

name	Tune name.

Friends And Related Symbol Documentation

◆ Backend::Pipeline::Detail::Worker::Encode

friend class Backend::Pipeline::Detail::Worker::Encode

friend

◆ Backend::Pipeline::Encoder

friend class Backend::Pipeline::Encoder

friend

◆ Muxer

friend class Muxer

friend

The documentation for this class was generated from the following file:

lib/public/StormByte/multimedia/pipeline/encoder.hxx

Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Encoder() [1/3]

◆ Encoder() [2/3]

◆ Encoder() [3/3]

◆ ~Encoder()

Member Function Documentation

◆ AudioChannels()

◆ AudioFrameSize()

◆ AudioSampleFormat()

◆ AudioSampleRate()

◆ BitRate() [1/2]

◆ BitRate() [2/2]

◆ Capabilities()

◆ CRF() [1/2]

◆ CRF() [2/2]

◆ Destination()

◆ EncoderTag()

◆ FineTune() [1/2]

◆ FineTune() [2/2]

◆ Implementation() [1/2]

◆ Implementation() [2/2]

◆ Index()

◆ InputCeiling()

◆ MaxBitRate() [1/2]

◆ MaxBitRate() [2/2]

◆ Opened()

◆ operator bool()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ Preset() [1/2]

◆ Preset() [2/2]

◆ Require() [1/2]

◆ Require() [2/2]

◆ Tune() [1/2]

◆ Tune() [2/2]

Friends And Related Symbol Documentation

◆ Backend::Pipeline::Detail::Worker::Encode

◆ Backend::Pipeline::Encoder

◆ Muxer
