StormByte::Multimedia::Pipeline::Config::Base Class Reference

Common destination-stream identity. More...

#include <StormByte/multimedia/pipeline/config/base.hxx>

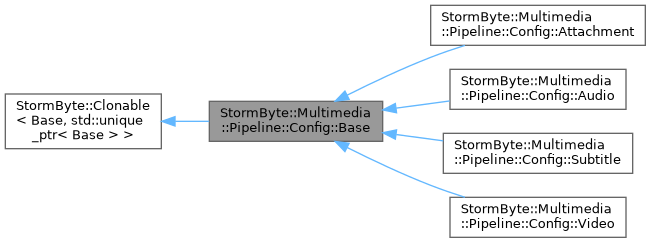

Inheritance diagram for StormByte::Multimedia::Pipeline::Config::Base:

Collaboration diagram for StormByte::Multimedia::Pipeline::Config::Base:

Public Member Functions
Lifecycle
	Base (const Base &other) noexcept=default
	Copy constructor.
	Base (Base &&other) noexcept=default
	Move constructor.
virtual	~Base () noexcept override=default
	Destructor.
Base &	operator= (const Base &other) noexcept=default
	Copy assignment.
Base &	operator= (Base &&other) noexcept=default
	Move assignment.
Identity
constexpr enum StormByte::Multimedia::Type	Type () const noexcept
	Media stamped by the leaf constructor.
Tags
const std::optional< std::string > &	Language () const noexcept
	Language override.
void	Language (std::string language) noexcept
	Sets the language override.
const std::optional< std::string > &	Title () const noexcept
	Title override.
void	Title (std::string title) noexcept
	Sets the title override.
const std::optional< bool > &	Default () const noexcept
	Default-disposition override.
void	Default (std::optional< bool > value) noexcept
	Sets or clears the default-disposition override.
const std::optional< bool > &	Forced () const noexcept
	Forced-disposition override.
void	Forced (std::optional< bool > value) noexcept
	Sets or clears the forced-disposition override.
Implementation
const struct Implementation &	Implementation () const noexcept
	Decoder / encoder pins.
void	Implementation (struct Implementation implementation) noexcept
	Replaces both pins.

Protected Member Functions
constexpr	Base (enum StormByte::Multimedia::Type type) noexcept
	Empty overrides; media fixed for the leaf lifetime.

Detailed Description

Common destination-stream identity.

Polymorphic store root (StormByte::Clonable with unique_ptr). Holds tags and implementation pins that apply to every media StormByte::Multimedia::Type used in a Plan slot. Type is stored at construction; it is not virtual. Oficio knobs live on the leaves.

A null destination codec on a leaf means Remux.

Constructor & Destructor Documentation

Base() [1/3]

StormByte::Multimedia::Pipeline::Config::Base::Base ( const Base &  other )

defaultnoexcept

Copy constructor.

Parameters

other

Source config.

Base() [2/3]

StormByte::Multimedia::Pipeline::Config::Base::Base ( Base &&  other )

defaultnoexcept

Move constructor.

Parameters

other

Config to take.

~Base()

virtual StormByte::Multimedia::Pipeline::Config::Base::~Base ( )

overridevirtualdefaultnoexcept

Destructor.

Base() [3/3]

constexpr StormByte::Multimedia::Pipeline::Config::Base::Base ( enum StormByte::Multimedia::Type  type )

inlineexplicitconstexprprotectednoexcept

Empty overrides; media fixed for the leaf lifetime.

Parameters

type	StormByte::Multimedia::Type of the derived class.

Member Function Documentation

Default() [1/2]

const std::optional< bool > & StormByte::Multimedia::Pipeline::Config::Base::Default ( ) const

inlinenoexcept

Default-disposition override.

Returns

Engaged value, or empty to inherit.

Default() [2/2]

void StormByte::Multimedia::Pipeline::Config::Base::Default ( std::optional< bool >  value )

inlinenoexcept

Sets or clears the default-disposition override.

Parameters

value

true / false to stamp, empty to inherit.

Forced() [1/2]

const std::optional< bool > & StormByte::Multimedia::Pipeline::Config::Base::Forced ( ) const

inlinenoexcept

Forced-disposition override.

Returns

Engaged value, or empty to inherit.

Forced() [2/2]

void StormByte::Multimedia::Pipeline::Config::Base::Forced ( std::optional< bool >  value )

inlinenoexcept

Sets or clears the forced-disposition override.

Parameters

value

true / false to stamp, empty to inherit.

Implementation() [1/2]

const struct Implementation & StormByte::Multimedia::Pipeline::Config::Base::Implementation ( ) const

inlinenoexcept

Decoder / encoder pins.

Returns

Pair; each side empty means Step default.

Implementation() [2/2]

void StormByte::Multimedia::Pipeline::Config::Base::Implementation ( struct Implementation  implementation )

inlinenoexcept

Replaces both pins.

Parameters

implementation

Decoder / encoder names. Empty sides = default.

Language() [1/2]

const std::optional< std::string > & StormByte::Multimedia::Pipeline::Config::Base::Language ( ) const

inlinenoexcept

Language override.

Returns

ISO tag, or empty to inherit.

Language() [2/2]

void StormByte::Multimedia::Pipeline::Config::Base::Language ( std::string  language )

noexcept

Sets the language override.

Parameters

language

ISO tag. Empty clears the override.

operator=() [1/2]

Base & StormByte::Multimedia::Pipeline::Config::Base::operator= ( Base &&  other )

defaultnoexcept

Move assignment.

Parameters

other

Config to take.

Returns

*this.

operator=() [2/2]

Base & StormByte::Multimedia::Pipeline::Config::Base::operator= ( const Base &  other )

defaultnoexcept

Copy assignment.

Parameters

other

Source config.

Returns

*this.

Title() [1/2]

const std::optional< std::string > & StormByte::Multimedia::Pipeline::Config::Base::Title ( ) const

inlinenoexcept

Title override.

Returns

Title, or empty to inherit.

Title() [2/2]

void StormByte::Multimedia::Pipeline::Config::Base::Title ( std::string  title )

noexcept

Sets the title override.

Parameters

title

Title. Empty clears the override.

Type()

constexpr enum StormByte::Multimedia::Type StormByte::Multimedia::Pipeline::Config::Base::Type ( ) const

inlineconstexprnoexcept

Media stamped by the leaf constructor.

Returns

Value passed to Base(Type).

---

The documentation for this class was generated from the following file:

• lib/public/StormByte/multimedia/pipeline/config/base.hxx
