StormByte::Network::Endpoint Class Reference

Shared base for Client and Server. More...

#include <StormByte/network/endpoint.hxx>

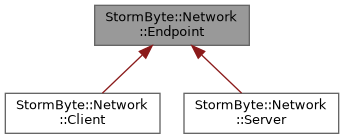

Inheritance diagram for StormByte::Network::Endpoint:

Collaboration diagram for StormByte::Network::Endpoint:

Public Member Functions
	Endpoint (const DeserializePacketFunction &deserialize_packet_function, std::shared_ptr< Logger::Log > logger) noexcept
	Construct with a packet factory and a logger.
	Endpoint (const Endpoint &other)=delete
	Copy constructor (deleted).
	Endpoint (Endpoint &&other) noexcept=default
	Move constructor.
virtual	~Endpoint () noexcept=default
	Destructor.
Endpoint &	operator= (const Endpoint &other)=delete
	Copy assignment (deleted).
Endpoint &	operator= (Endpoint &&other) noexcept=default
	Move assignment.
virtual bool	Connect (const Connection::Protocol &protocol, const std::string &address, const unsigned short &port)=0
	Connect or listen (meaning depends on the derived class).
virtual void	Disconnect () noexcept=0
	Tear down the endpoint.
virtual Connection::Status	Status () const noexcept=0
	Current connection/listen status.

Protected Member Functions
std::shared_ptr< Connection::Client >	CreateConnection (std::shared_ptr< Socket::Client > socket) noexcept
	Wrap a socket client with input/output pipelines.
virtual Buffer::Pipeline	InputPipeline () const noexcept=0
	Pipeline applied to inbound frame payloads.
virtual Buffer::Pipeline	OutputPipeline () const noexcept=0
	Pipeline applied to outbound frame payloads.
PacketPointer	Send (std::shared_ptr< Connection::Client > client_connection, const Transport::Packet &packet) noexcept
	Send packet and wait for a response frame.
bool	Reply (std::shared_ptr< Connection::Client > client_connection, const Transport::Packet &packet) noexcept
	Send packet without waiting for a reply.

Protected Attributes
DeserializePacketFunction	m_deserialize_packet_function
	Packet factory.
std::shared_ptr< Logger::Log >	m_logger
	Logger.

Detailed Description

Shared base for Client and Server.

Not instantiated directly. Override InputPipeline() / OutputPipeline(). Use Send() / Reply() for framed request/response.

Note

Inheritance-oriented. Derive from Client / Server, not from Endpoint alone.

Constructor & Destructor Documentation

Endpoint() [1/3]

StormByte::Network::Endpoint::Endpoint ( const DeserializePacketFunction &  deserialize_packet_function, std::shared_ptr< Logger::Log >  logger  )

noexcept

Construct with a packet factory and a logger.

Parameters

deserialize_packet_function	Builds domain packets from wire data.
logger	Diagnostic logger.

Endpoint() [2/3]

StormByte::Network::Endpoint::Endpoint ( const Endpoint &  other )

delete

Copy constructor (deleted).

Endpoint() [3/3]

StormByte::Network::Endpoint::Endpoint ( Endpoint &&  other )

defaultnoexcept

Move constructor.

~Endpoint()

virtual StormByte::Network::Endpoint::~Endpoint ( )

virtualdefaultnoexcept

Destructor.

Member Function Documentation

Connect()

virtual bool StormByte::Network::Endpoint::Connect ( const Connection::Protocol &  protocol, const std::string &  address, const unsigned short &  port  )

pure virtual

Connect or listen (meaning depends on the derived class).

Parameters

protocol	Address family.
address	Host or bind address.
port	Port number.

Returns

true on success.

Implemented in StormByte::Network::Client, and StormByte::Network::Server.

CreateConnection()

std::shared_ptr< Connection::Client > StormByte::Network::Endpoint::CreateConnection ( std::shared_ptr< Socket::Client >  socket )

protectednoexcept

Wrap a socket client with input/output pipelines.

Parameters

socket

Underlying socket client.

Returns

Connection::Client.

Disconnect()

virtual void StormByte::Network::Endpoint::Disconnect ( )

pure virtualnoexcept

Tear down the endpoint.

Implemented in StormByte::Network::Client, and StormByte::Network::Server.

InputPipeline()

virtual Buffer::Pipeline StormByte::Network::Endpoint::InputPipeline ( ) const

protectedpure virtualnoexcept

Pipeline applied to inbound frame payloads.

Returns

Pipeline.

operator=() [1/2]

Endpoint & StormByte::Network::Endpoint::operator= ( const Endpoint &  other )

delete

Copy assignment (deleted).

operator=() [2/2]

Endpoint & StormByte::Network::Endpoint::operator= ( Endpoint &&  other )

defaultnoexcept

Move assignment.

OutputPipeline()

virtual Buffer::Pipeline StormByte::Network::Endpoint::OutputPipeline ( ) const

protectedpure virtualnoexcept

Pipeline applied to outbound frame payloads.

Returns

Pipeline.

Reply()

bool StormByte::Network::Endpoint::Reply ( std::shared_ptr< Connection::Client >  client_connection, const Transport::Packet &  packet  )

protectednoexcept

Send packet without waiting for a reply.

Parameters

client_connection	Active connection.
packet	Packet to send.

Returns

true on success.

Send()

PacketPointer StormByte::Network::Endpoint::Send ( std::shared_ptr< Connection::Client >  client_connection, const Transport::Packet &  packet  )

protectednoexcept

Send packet and wait for a response frame.

Parameters

client_connection	Active connection.
packet	Packet to send.

Returns

Response packet, or nullptr on failure.

Status()

virtual Connection::Status StormByte::Network::Endpoint::Status ( ) const

pure virtualnoexcept

Current connection/listen status.

Returns

Status.

Implemented in StormByte::Network::Client, and StormByte::Network::Server.

Member Data Documentation

m_deserialize_packet_function

DeserializePacketFunction StormByte::Network::Endpoint::m_deserialize_packet_function

protected

Packet factory.

m_logger

std::shared_ptr<Logger::Log> StormByte::Network::Endpoint::m_logger

protected

Logger.

---

The documentation for this class was generated from the following file:

• lib/public/StormByte/network/endpoint.hxx
